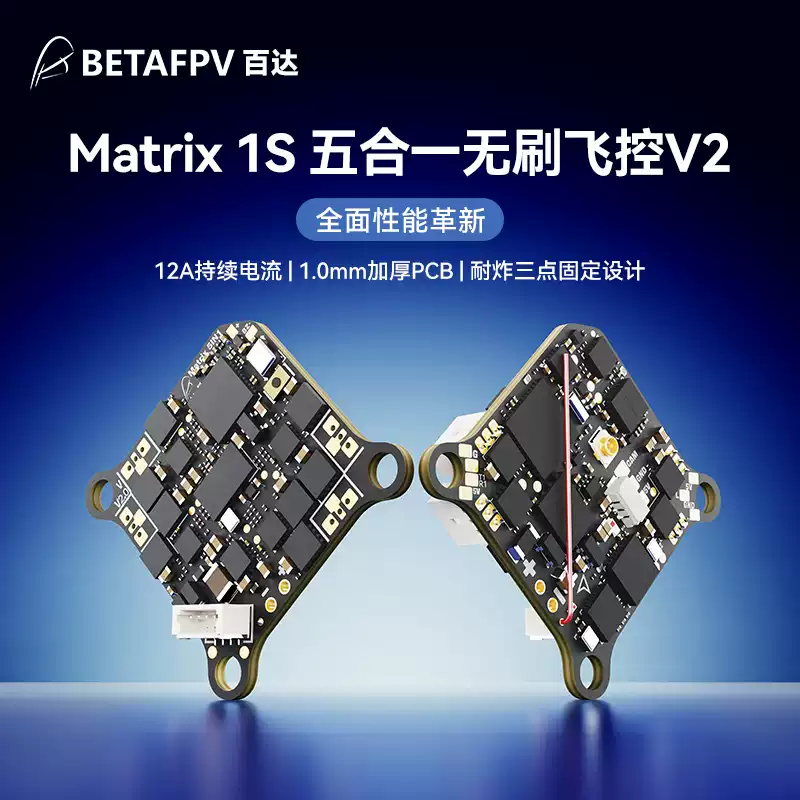

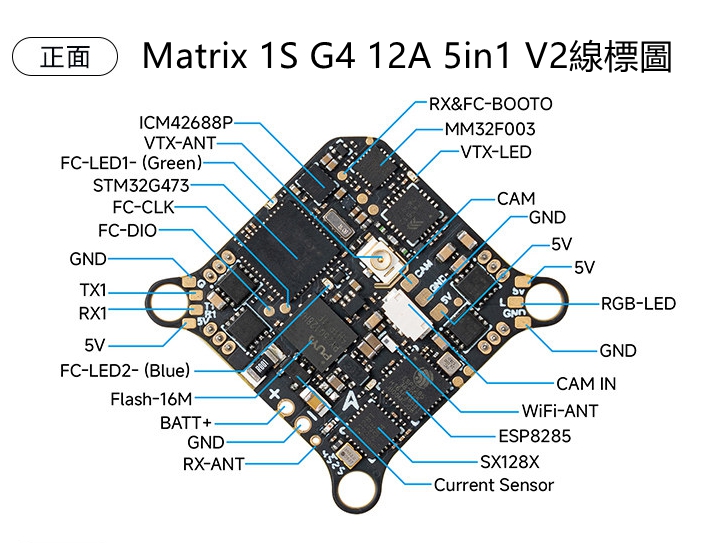

BetaFPV Matrix 1S 無刷飛控| G4 12A 5IN1 V2.0 五合一AIO 一體集成飛控

SKU：001605

存貨狀態：5

1870

商品描述

更多資料請參閱 BETAFPV官網

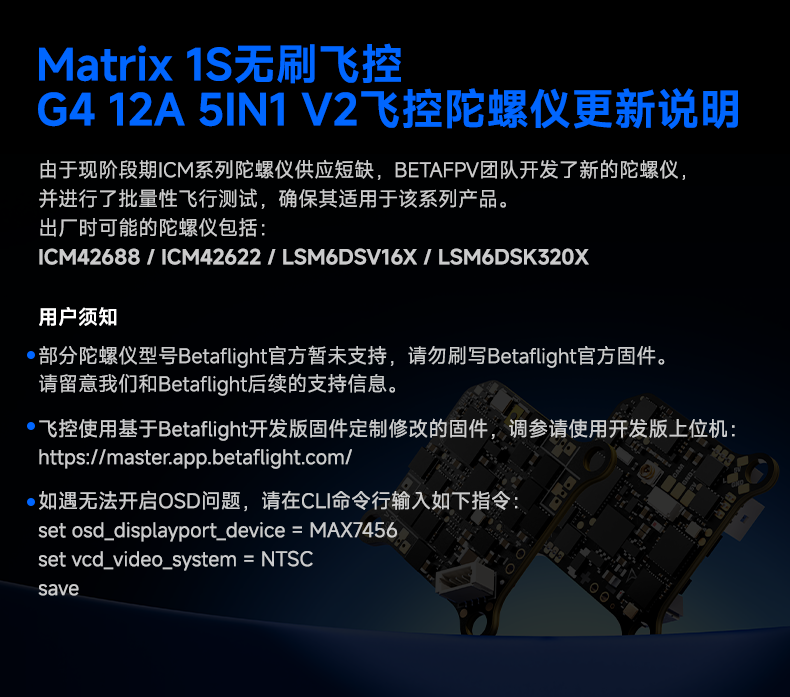

Betaflight 尚未發布與某些 IMU 晶片相容的官方固件，因此請不要刷入官方 Betaflight 固件，並關注未來的支援更新。

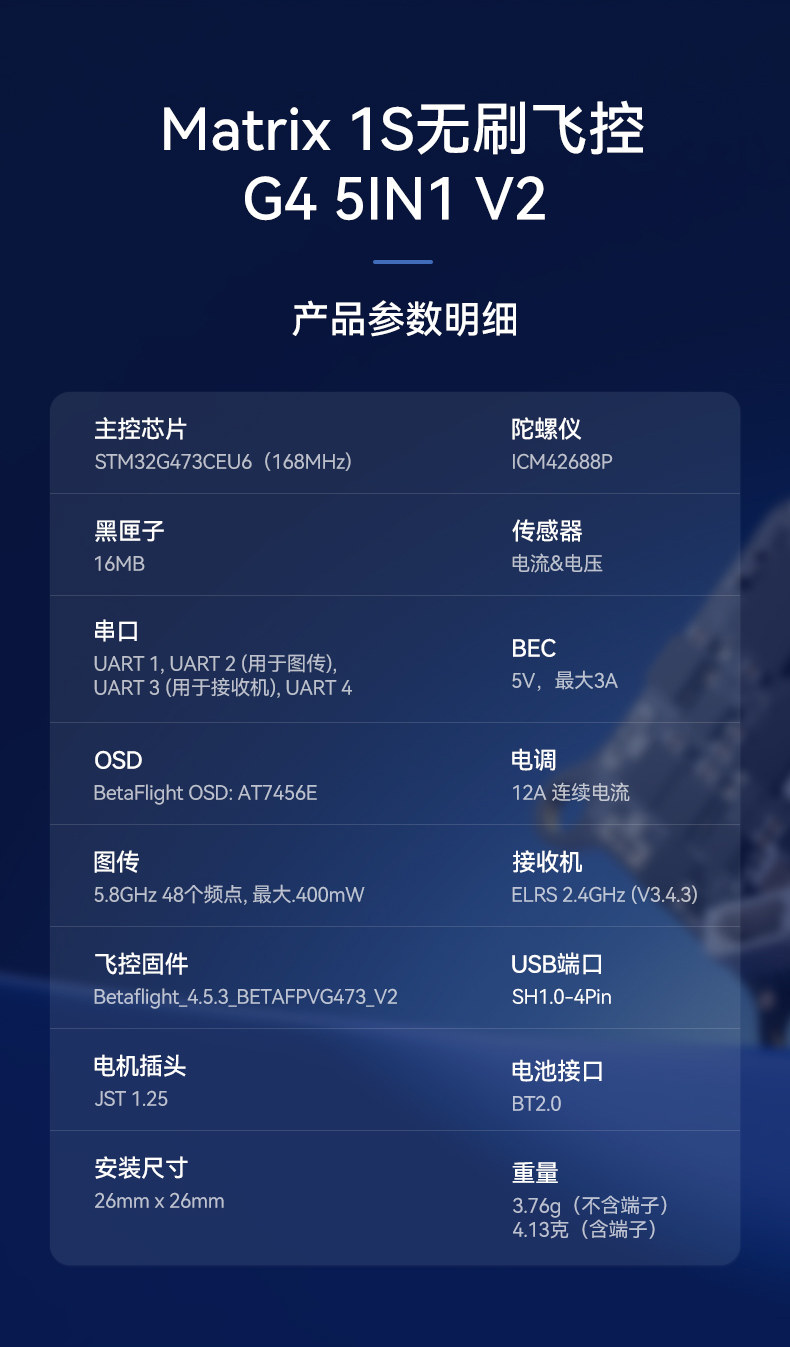

Specifications

FC

  • MCU: STM32G473CEU6
  • Gyro: ICM42688P / ICM42622 / BMI270 / LSM6DSK320X
  • Blackbox memory: 16MB
  • Sensor: Voltage & Current
  • BEC: 5V, Max 3A

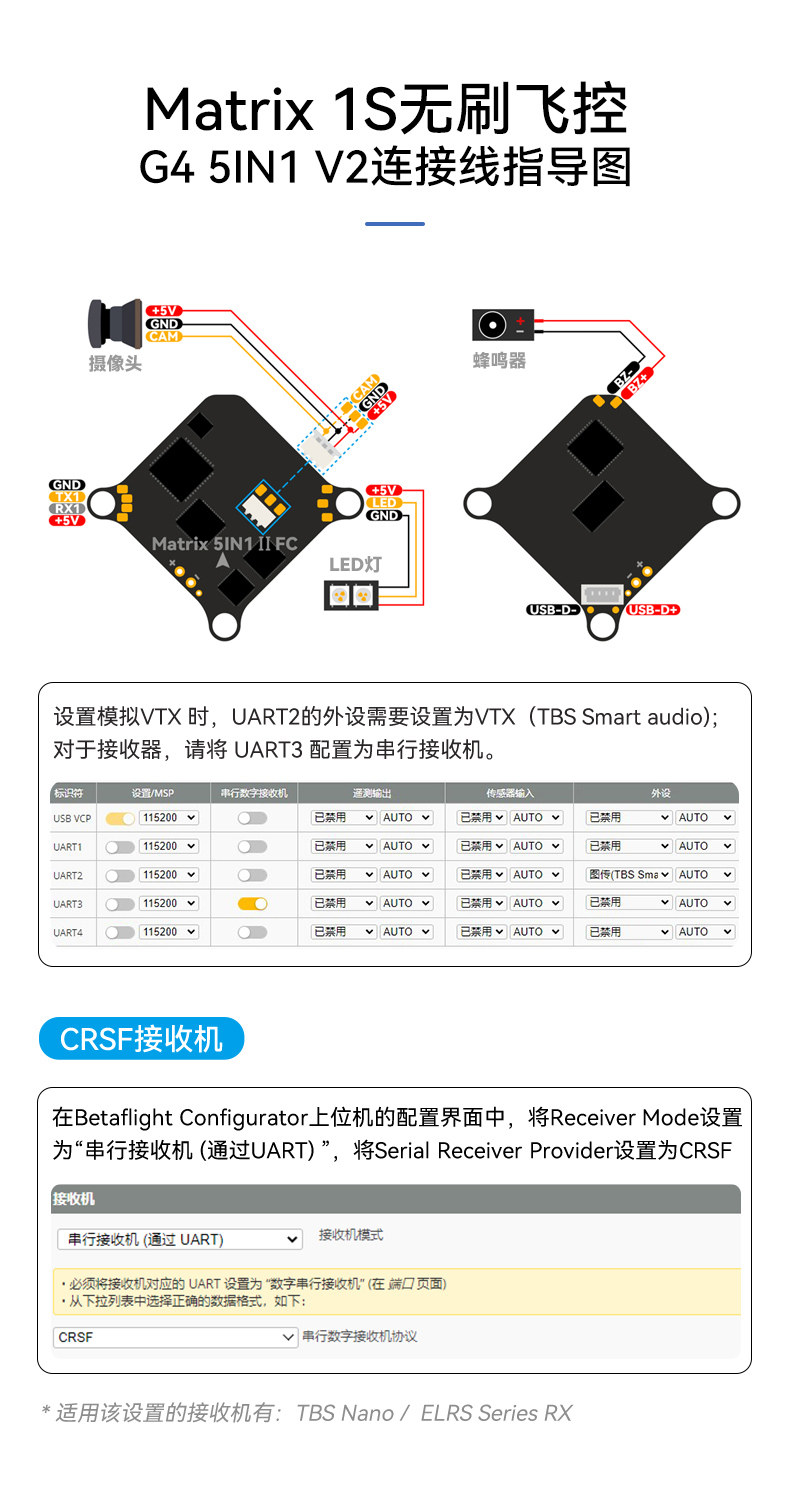

  • UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
  • BetaFlight OSD: AT7456E
  • ESC: 12A continuous
  • RX:Serial ELRS 2.4GHz (V3.4.3)
  • VTX: 5.8GHz 48 channels, Max 400mW
  • FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
  • USB port: SH1.0-4Pin
  • Motor connector: JST1.25
  • Battery connector: BT2.0
  • Mounting hole size: 26mm x 26mm
  • Weight: 4.1±0.1g (solder-free), 3.76g (soldered-required)

ESC

  • Power input: 1S Only

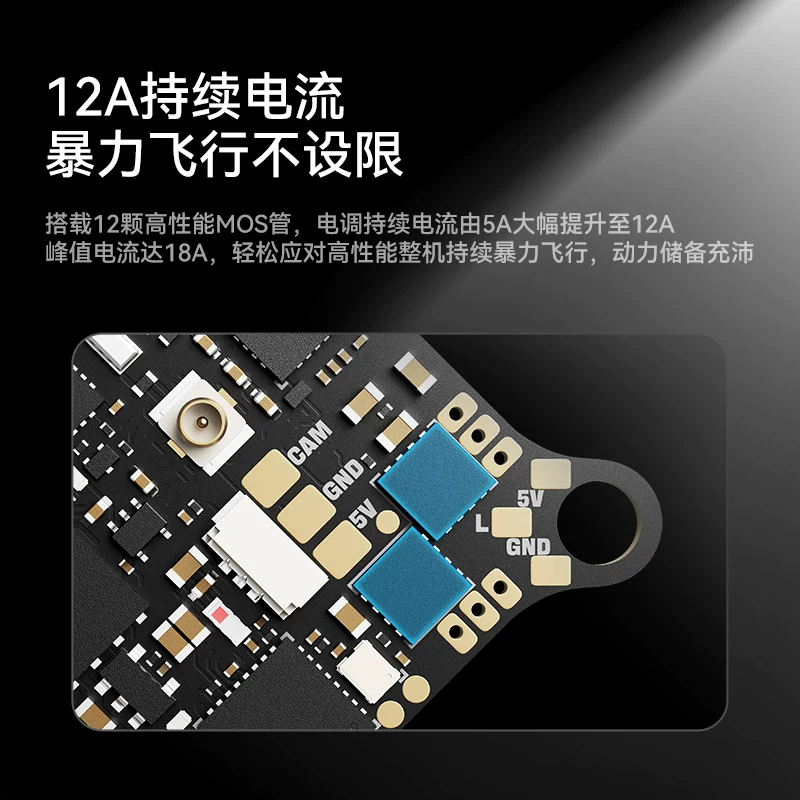

  • Current: 12A continuous, 18A peak
  • ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
  • Digital signal protocol: DShot300, DShot600

VTX

  • Output power: 25/100/200/400/PIT
  • Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
  • Channel SEL: SmartAudio2.0
  • Modulation type: FM
  • Frequency control: PLL
  • All harmonic: Max -50dBm
  • Frequency stability: ±100KHz (Typ.)
  • Frequency precision: ±200KHz (Typ.)
  • Channel carrier error: ±1.5dB
  • Antenna port: 50 Ω
  • Operating temperature: -10℃~80℃
